Automatic Rolling Shutters

Automatic Rolling Shutters

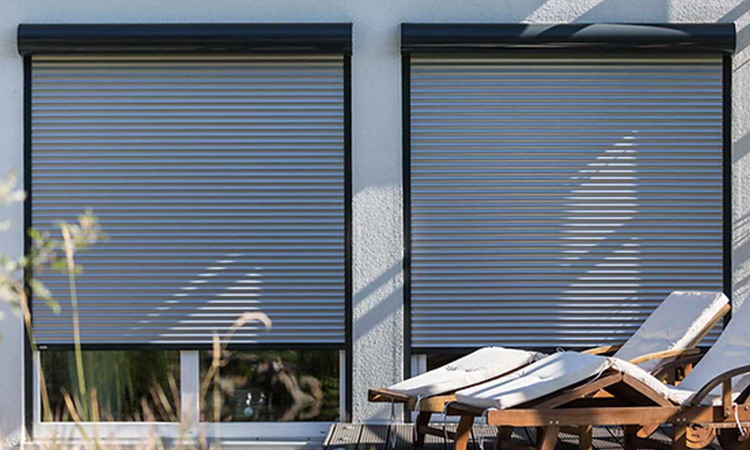

AUTOMATIC ROLLING SHUTTERS, Double skin aluminum rolling shutter is designed for strength and security. The slats are cold rolled from 0.45mm thick aluminum coils and PU foam is injected during the forming process.

The thermal insulation (polyurethane foam) inside the slats reduces heat and noise up to 95%. The curtain is made of interlocking curved aluminum slats (77mm) and is fitted with nylon end locks to prevent lateral movement and assist easy operation. For larger shutters AIC will propose 1,3mm thick double skin aluminum shutter slats. These slats are tested to withstand wind forces of up to 1,75Kpa and are suitable for shutters of up 30m2 surface area.

For all Silver Arrow mem L.L.C shutters the aluminum hood will serve as protection for the rolled up curtain. Side tracks will guide the curtain and provide stable movement. Several springs are used to counter-balance the shutter curtain and the brackets are bolted to the building structure. Silver Arrow Mem L.L.C, rolling shutters can be delivered in all standard RAL colors. Silver Arrow L.L.C extruded and/or cold formed shutter curtains are all installed with built-in­ to-the-shaft tubular motors, photocells and pneumatic edges. Smaller extruded slats, insulated and non-insulated can be used for specific requirements.
